A private educational institute in Butibori, an industrial area near Nagpur has a school campus surrounded by hostels for girls and boys along with closed and open air sports facilities. Amongst this was an old hostel which was originally built in the 1970s as industrial staff housing. It was later modified to house school boys. It was a modest two floor structure with an L shaped plan. Since there were three independent wings with staircases, the tenements and the rooms weren’t linked with corridors as a normal hostel.

Brief of the extension project was to create a cafeteria and additional rooms for the growing needs of the institution. Students come from the surrounding rural areas and take vocational or skill based education at the institution. Since students starting from the age of six stay here, security and safety remains the principal concern.

There were many mature trees on the land for the proposed expansion which posed as a constraint for the footprint but an opportunity for the design.

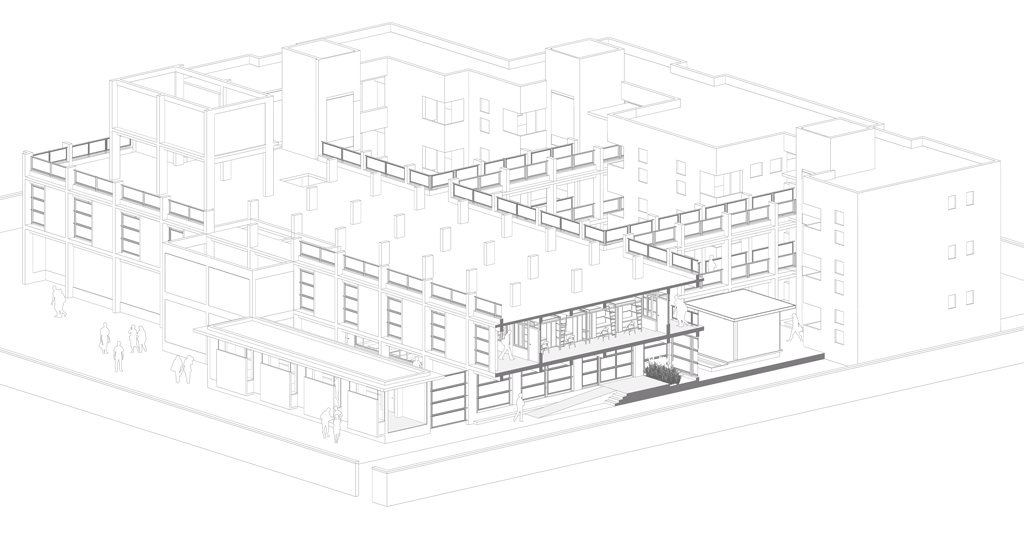

The new built was planned at a distance from the existing hostel with bridges connecting the staircases of the old hostel. This placement creates a series of courtyards punctuated by the connecting bridges.

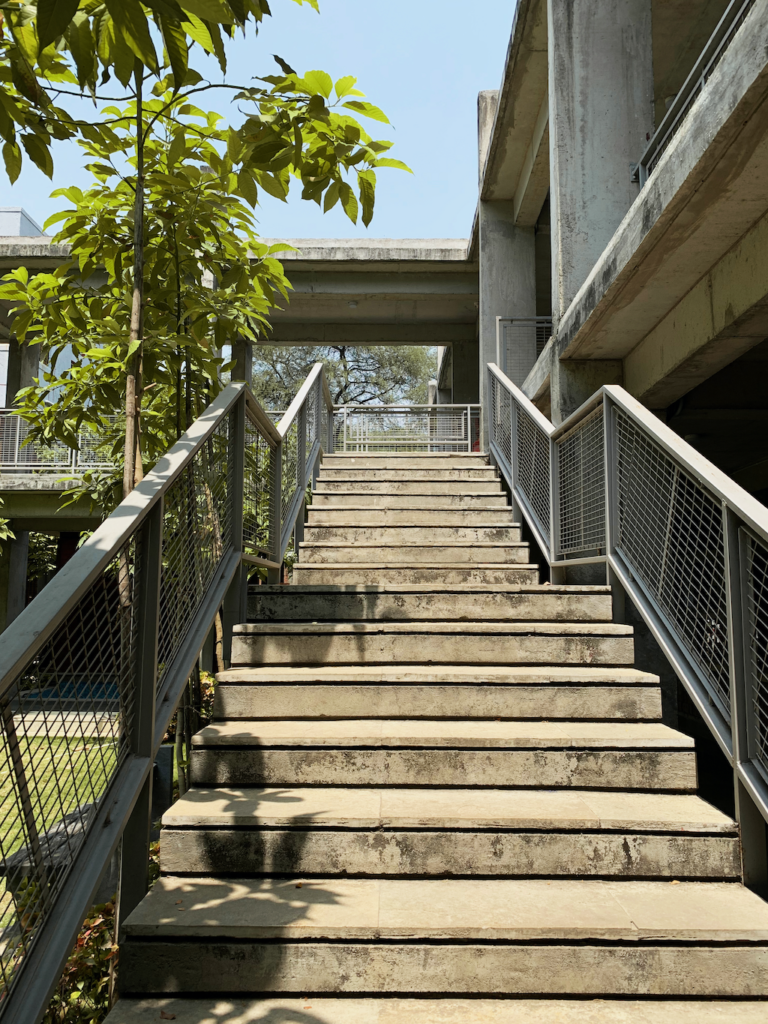

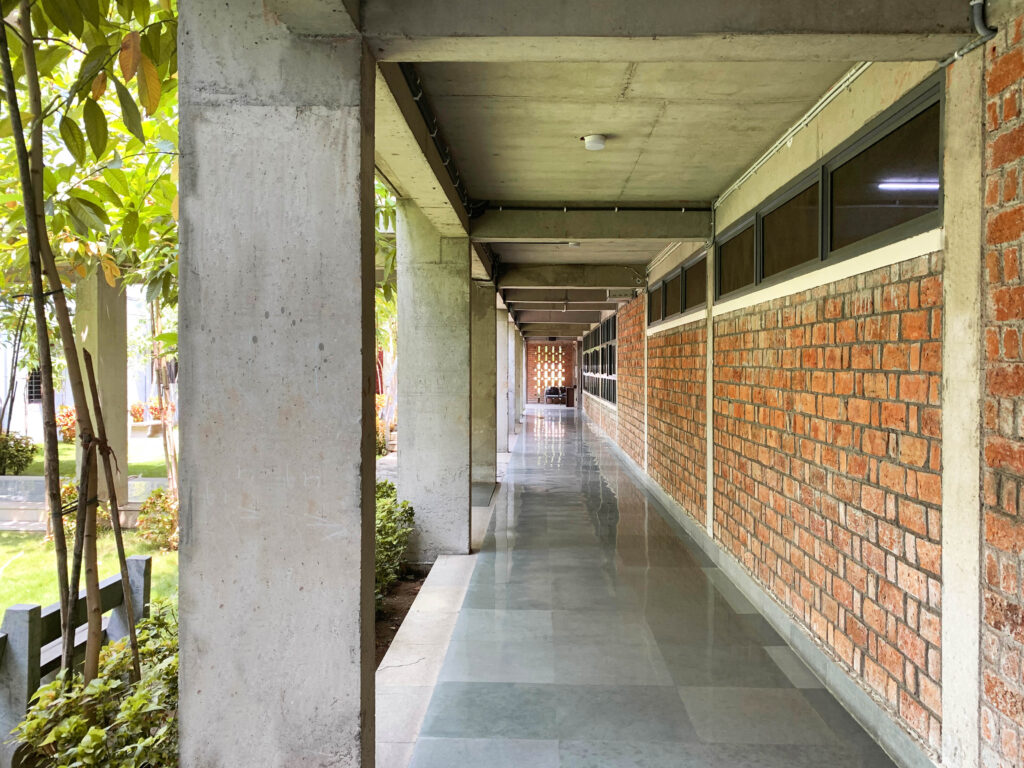

The dormitories on the upper floor has a connecting corridor on the courtyard side while it also has a wide balcony on the tree lined side for studies, other activities and drying clothes in a dignified manner. The corridor acts as a buffer in the extreme heat during summers and also provides space for carrying evaporative cooling ducts to the dormitories. An open staircase is designed in one of the courts.

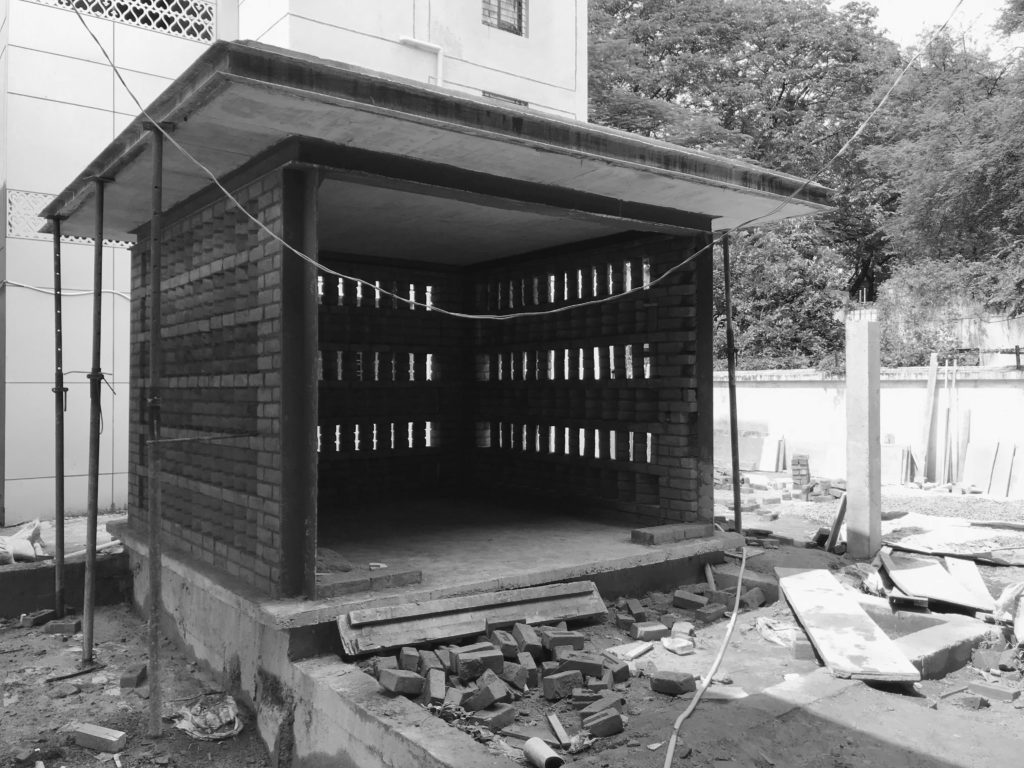

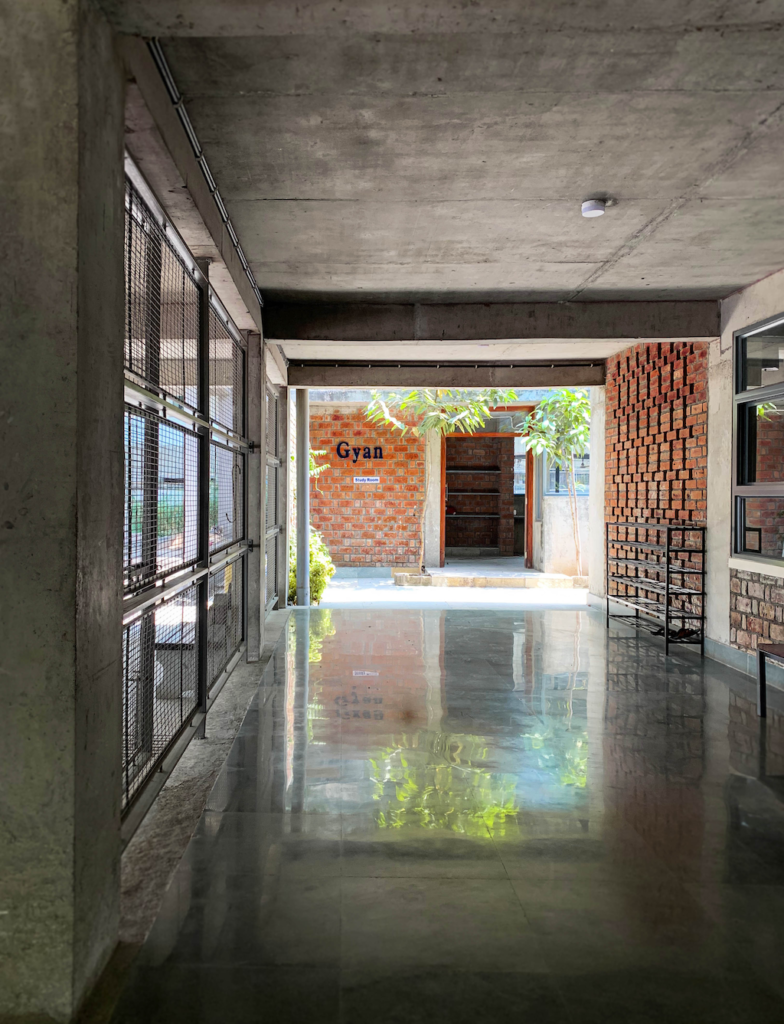

A modest study center nestled in the trees has been purposefully removed from the main built to provide isolation and sanctity. A temple for meditation along with a water body is placed between the old and the new built.

Washrooms are planned to face the greenery towards an enclosed courtyard made of brick jaali.

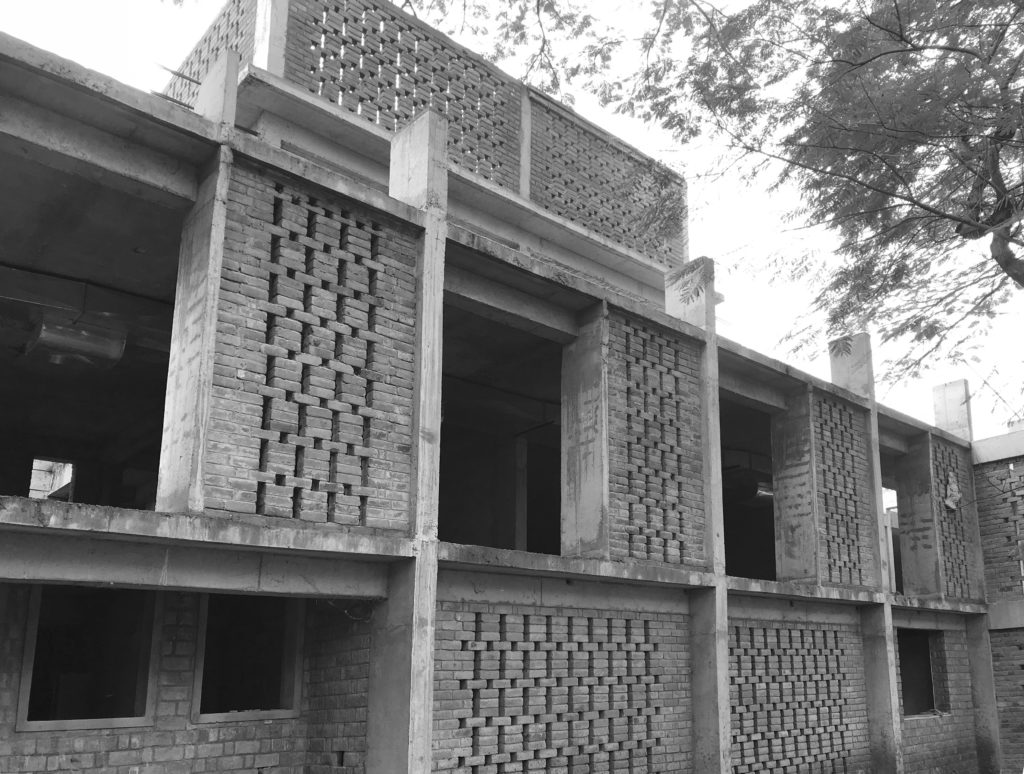

Structural system is kept simple and modular to allow seamless vertical expansion in years to come. Form finished concrete and exposed brickwork with local bricks impart an earthy and grounded look to the built. Rat trap bond brick masonry provides thermal insulation besides saving on bricks. Not to mention the saving on the plaster or paint now and in future.

Natural stones like Kota, shahbad and kadappa have been used for flooring and to create desks and ledges. Dormitory furniture is designed as a single sleeping, storage and study module conserving valuable interactive space in the room.
